Onyx IV 200W flood

Onyx IV 200W flood
EL200X4F
Onyx IV 200W flood
PRODUCT DATA
PRODUCT CODE
EL200X4F
lm
LUMENS (lm)
26000
lm
DIMMABLE
WATTAGE (W)
200W
COLOUR TEMP. (K)
4000K
EMERGENCY
WEIGHT (kg)
2.9kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
0.18m2
CRI
>70
REPLACEMENT FOR
500W MH/SON
DIMENSIONS (mm)
402.5x349.5x44mm
PRODUCT TYPE
EFFICIENCY (lm/w)
130lm/W
RATED LIFETIME (hrs)
25,000hrs
IP
65
IK
07
HOUSING COLOUR
Black
WORKING ENVIRONMENT
-20°C to 40°C
WARRANTY
3 years
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The high output of the Onyx 200W flood (4th generation) makes it a perfect replacement for a 500W MH/SON and is ideal as a high powered floodlight. The input voltage range of 110-240Vac allows for use in both commercial, industrial and construction site lighting. Additionally, by using our optional coastal marine upgrade version (LL004), users are able to install the Onyx in coastal marine areas (Code: LL004).

Commercial applications

For external use on: Warehouses, factories, sports facilities, retail outlets, car-parks, construction sites, footpaths, parks, loading bays. For swimming pool areas, high/low bay or moving structures, please contact us for information on our products which are suitable for these three applications.

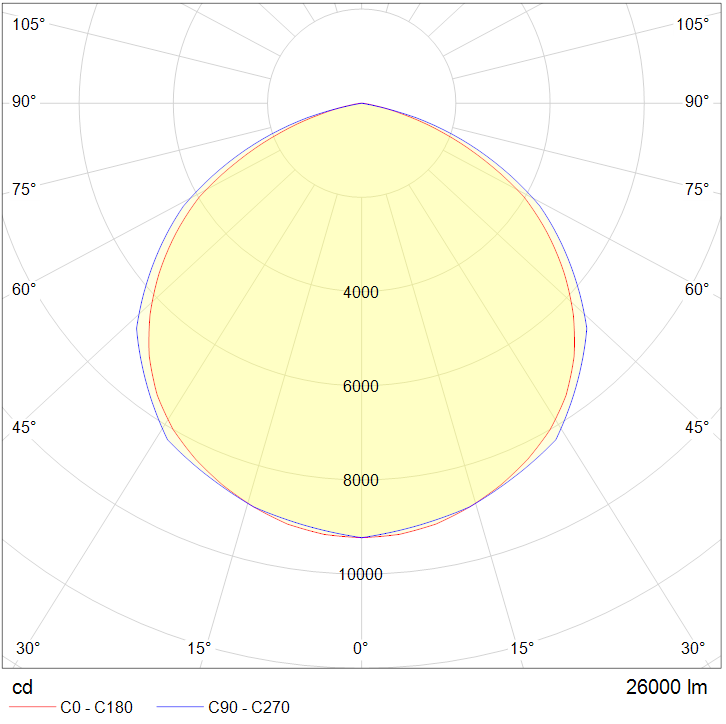

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram
DIMENSIONS
EL200X4F
Onyx IV 200W flood
Lumen output
Lumen output
Colour Temperature
Colour Temperature
Wattage
Wattage
IP Rating
IP Rating
Warranty
Warranty
KEy Features

The high output of the Onyx 200W flood (4th generation) makes it a perfect replacement for a 500W MH/SON and is ideal as a high powered floodlight. The input voltage range of 110-240Vac allows for use in both commercial, industrial and construction site lighting. Additionally, by using our optional coastal marine upgrade version (LL004), users are able to install the Onyx in coastal marine areas (Code: LL004).

Commercial applications

For external use on: Warehouses, factories, sports facilities, retail outlets, car-parks, construction sites, footpaths, parks, loading bays. For swimming pool areas, high/low bay or moving structures, please contact us for information on our products which are suitable for these three applications.

PHOTOMETRIC (LDT) FILES
Download PDF
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
Light source data
INSTALLATION instructions
LUMEN OUTPUT (lm)
26000
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
200W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
2.9kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
0.18m2
CRI
>70
REPLACEMENT FOR
DIMENSIONS (mm)
402.5x349.5x44mm
PRODUCT TYPE
EFFICIENCY (lm/W)
130lm/W
RATED LIFETIME (hrs)
25,000hrs
IP-RATING
65
IK-RATING
07
INPUT VOLTAGE
110-240Vac (50/60HZ)
WORKING ENVIRONMENT
-20°C to 40°C
POWER FACTOR
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
3 years
ENERGY CLASS. OF LIGHT SOURCE
HOUSING COLOUR
Black
ON/OFF SENSOR
LOW GLARE
YES
FLICKER FREE
YES
SWITCHABLE OUTPUT
YES
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
